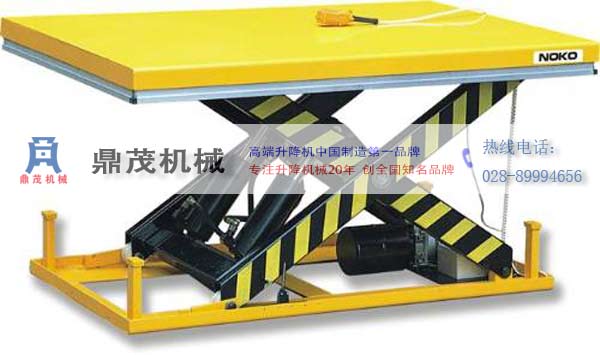

成都升降平臺舉升速度不穩定從現場使用來看,經常出現升降抖動、上升位置較難檢測找不到中位、上升時有沖擊噪聲、液壓缸滲油等現象.Chengdu lifting platform lifting speed is not stable from the use of the field of view, often rise and rise jitter, rising position is difficult to detect can not find the middle position, the rise of impact noise, hydraulic cylinder oil leakage and other phenomena.

1.經現場察看主要是成都升降液壓缸的舉升速度過快,致使故障率增加,嚴重影響了生產效率.升降液壓缸舉升速度不穩定的原因分析液壓缸舉升速度不穩定,其原因很多,有設計方面的、也有加工制造和使用方面的。The scene view is mainly Chengdu lifting hydraulic cylinder lifting speed too fast, resulting in the increase of failure rate, seriously affecting the efficiency of production. The reason of lifting speed lifting hydraulic cylinder stability analysis of hydraulic cylinder lifting speed is not stable, for many reasons, there are design, there are aspects of manufacture and use.

2.針對該液壓系統存在的故障,運用速度剛度理論,分析升降液壓缸舉升速度不穩定的原因。According to the faults of the hydraulic system, using the theory of velocity stiffness, the reasons for the instability of the lifting speed of the hydraulic cylinder are analyzed.

3.當負載不變時,節流閥口進越小,則系統速度剛度進越高;反之,若節流閥開口面積越大,則進越低.When the load is constant, the throttle orifice into the smaller, the system speed stiffness into the higher; otherwise, if the throttle valve opening area, the lower the inlet.

4.當負載不變時，低速下的速度剛度好,當負載變化時,負載小時的速度剛度好.When the load is constant, the speed of the low speed is good. When the load changes, the speed of the load hour is good.

5.提高供油壓力加大液壓缸有效作用面積,可提高速度剛度.Increase the supply pressure to increase the effective area of the hydraulic cylinder, can improve the speed stiffness.

綜上所述，引發成都升降平臺該故障的主要原因是液壓系統提升調速回路設計不合理造成.In summary, the main reason for the failure of the Chengdu lift platform is the hydraulic system to upgrade the speed loop design is not reasonable.
